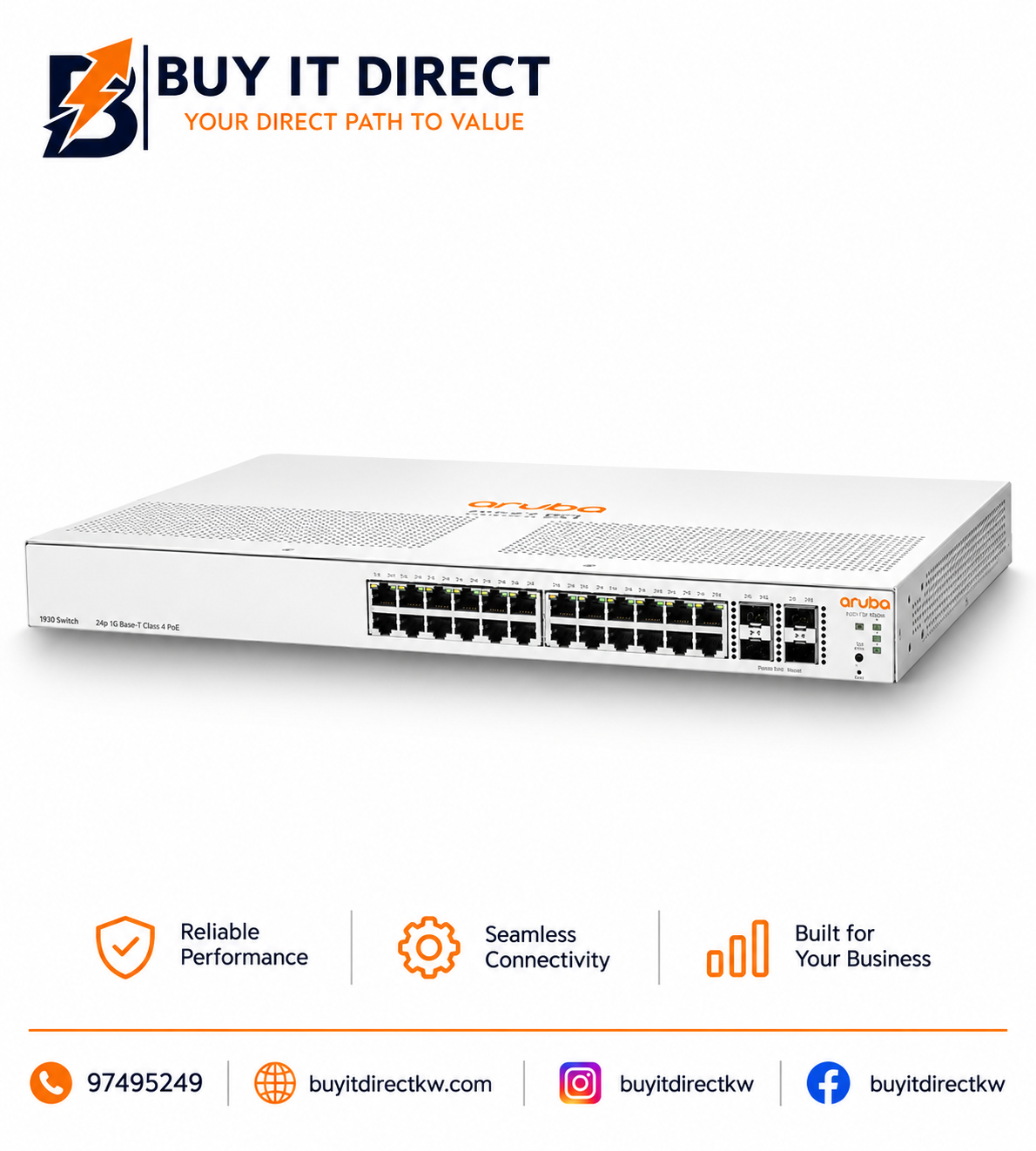

The Aruba Instant On 1930 24G Class4 PoE 4SFP SFP Plus 195W Switch is a smart managed Gigabit Ethernet switch designed for small and growing business network environments. It provides 24 RJ45 autosensing 10 100 1000 Gigabit Class 4 PoE ports together with 4 SFP SFP Plus ports supporting 1GbE and 10GbE connectivity.

With a 195W Class 4 PoE power budget, the switch can provide power and network connectivity over Ethernet to compatible PoE devices such as wireless access points, IP phones, security cameras and other network devices. The 4 SFP SFP Plus ports provide high speed uplink connectivity for connecting the switch to other network equipment or extending the network over compatible fiber or direct attach connections.

The Aruba Instant On 1930 series is designed for simple setup and management and can be managed through the Instant On mobile application, cloud based web portal or local web interface. This makes the switch suitable for small business networks requiring reliable wired connectivity, PoE device support and flexible network management.

TECHNICAL SPECIFICATIONS

• Product Type: Smart Managed Gigabit Ethernet Switch

• Product Series: Aruba Instant On 1930

• Model: 1930 24G Class4 PoE 4SFP SFP Plus 195W

• Manufacturer Part Number: JL683A

• RJ45 Ports: 24

• RJ45 Port Speed: 10 100 1000 Mbps

• PoE Ports: 24 Class 4 PoE Ports

• PoE Power Budget: 195 W

• Uplink Ports: 4 SFP SFP Plus Ports

• Uplink Speed: 1GbE and 10GbE

• SFP SFP Plus Port Speed: 1000 10000 Mbps

• Switching Capacity: 128 Gbps

• Throughput: Up to 95.23 Mpps

• Packet Buffer: 1.5 MB

• MAC Address Table: 16000 Entries

• Static Routing Table: 32 Entries

• Management: Instant On Mobile App Cloud Portal and Local Web GUI

• Rack Mounting: 1U Rack Mountable

• Dimensions: 44.25 x 26.47 x 4.39 cm

• Weight: Approximately 3.5 kg

• Operating Temperature: 0 to 40 C

• Operating Humidity: 15 to 95 percent at 40 C

• Power Supply: Internal Power Supply

• AC Voltage: 100 to 127 V and 200 to 240 V

• AC Frequency: 50 to 60 Hz

• Maximum Power Rating: 248.7 W

• Manufacturer: Aruba

• Series: Aruba Instant On 1930
