Brand Planet
Manufacturer Planet Technology

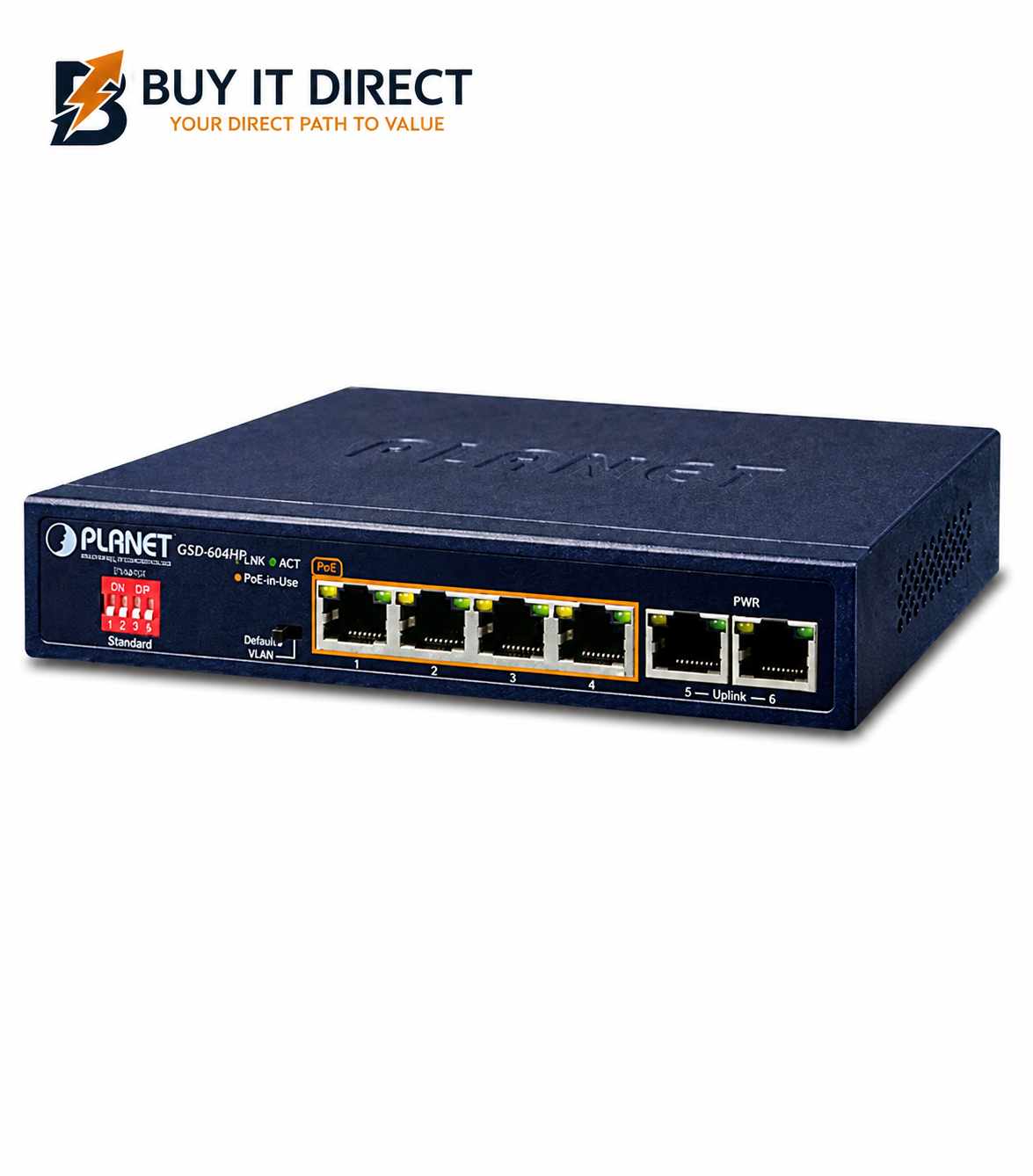

Model GSD 604HP
Product Type Gigabit PoE Plus Desktop Switch
Management Type Unmanaged
Total Ethernet Ports 6
PoE Ports 4
Uplink Ports 2
Network Interface 10 100 1000BASE T RJ45
PoE Standard IEEE 802.3af and IEEE 802.3at
PoE Type End Span PSE
Maximum PoE Output Up to 30W Per Port
PoE Power Budget 65W
Power Input 54V DC 1.3A
Power Supply External
Switching Capacity 12Gbps
Forwarding Rate 8.92Mpps
MAC Address Table 4K
Jumbo Frame 9K
Switch Architecture Store and Forward
Flow Control IEEE 802.3x
Auto Negotiation Supported
Auto MDI MDI X Supported
Port Based VLAN Supported
Extend Mode Supported
Standard Mode Supported
VLAN Mode Supported
Maximum Standard Ethernet Distance 100M
Maximum Extend Mode Distance Up to 250M
Extend Mode Speed 10Mbps Per Port
Fanless Design Yes
Housing Compact Desktop Design
ESD Protection 6KV DC
Dimensions 168 x 93 x 32mm
Weight 374g
Operating Temperature 0 to 50 Degrees Celsius
Operating Humidity 5 to 95 Percent Non Condensing
Designed to provide Gigabit Ethernet connectivity and PoE Plus power for small business home office surveillance and network installations
Features six 10 100 1000BASE T RJ45 Ethernet ports including four IEEE 802.3af at PoE ports and two additional Gigabit uplink ports
Four PoE Plus ports can power compatible IP cameras wireless access points VoIP phones and other supported PoE network equipment
Each PoE port supports power output up to 30 watts for compatible IEEE 802.3at powered devices
Provides a total PoE power budget of 65 watts for distributing power across connected compatible PoE devices
Two dedicated Gigabit uplink ports provide high speed connections to NVR systems routers servers switches and other network infrastructure
Supports 12Gbps switching capacity and 8.92Mpps forwarding performance for efficient Gigabit network traffic handling
Standard operation mode allows the device to function as a normal IEEE 802.3af at Gigabit PoE switch
Port Based VLAN mode isolates compatible ports to help reduce unwanted multicast and broadcast traffic between connected devices
Extend mode increases Ethernet and PoE transmission distance beyond the conventional 100 meter limitation for compatible applications
In Extend mode supported PoE ports can provide connectivity up to 250 meters while operating at 10Mbps depending on cabling and installation conditions
Suitable for IP surveillance systems where multiple PoE cameras need to connect to an NVR or surveillance network
Auto Negotiation automatically selects the appropriate supported network speed for connected Ethernet equipment
Auto MDI MDI X simplifies Ethernet installation by automatically detecting compatible cable connection requirements
Store and Forward switching architecture helps provide reliable Ethernet packet transmission across connected network devices
Supports a 4K MAC address table with automatic address learning and aging for efficient network operation
Supports 9K Jumbo Frames for compatible high volume Gigabit Ethernet data applications
IEEE 802.3x flow control helps maintain stable network data transmission during periods of increased network traffic
Automatically detects compatible PoE powered devices before supplying power for safer network deployment
Fanless design provides quiet operation making the switch suitable for offices homes surveillance rooms and other noise sensitive environments
Compact desktop construction makes the switch convenient for small network installations and locations with limited equipment space
6KV ESD protection helps improve network stability and equipment protection in professional installations
Suitable for IP cameras wireless access points VoIP devices NVR systems home networks offices shops and small business networks
Ideal for users requiring a compact six port Gigabit Ethernet switch with four PoE Plus ports dual Gigabit uplinks and flexible Standard VLAN and Extend operating modes
