Brand Ruijie Reyee

Manufacturer Ruijie Networks

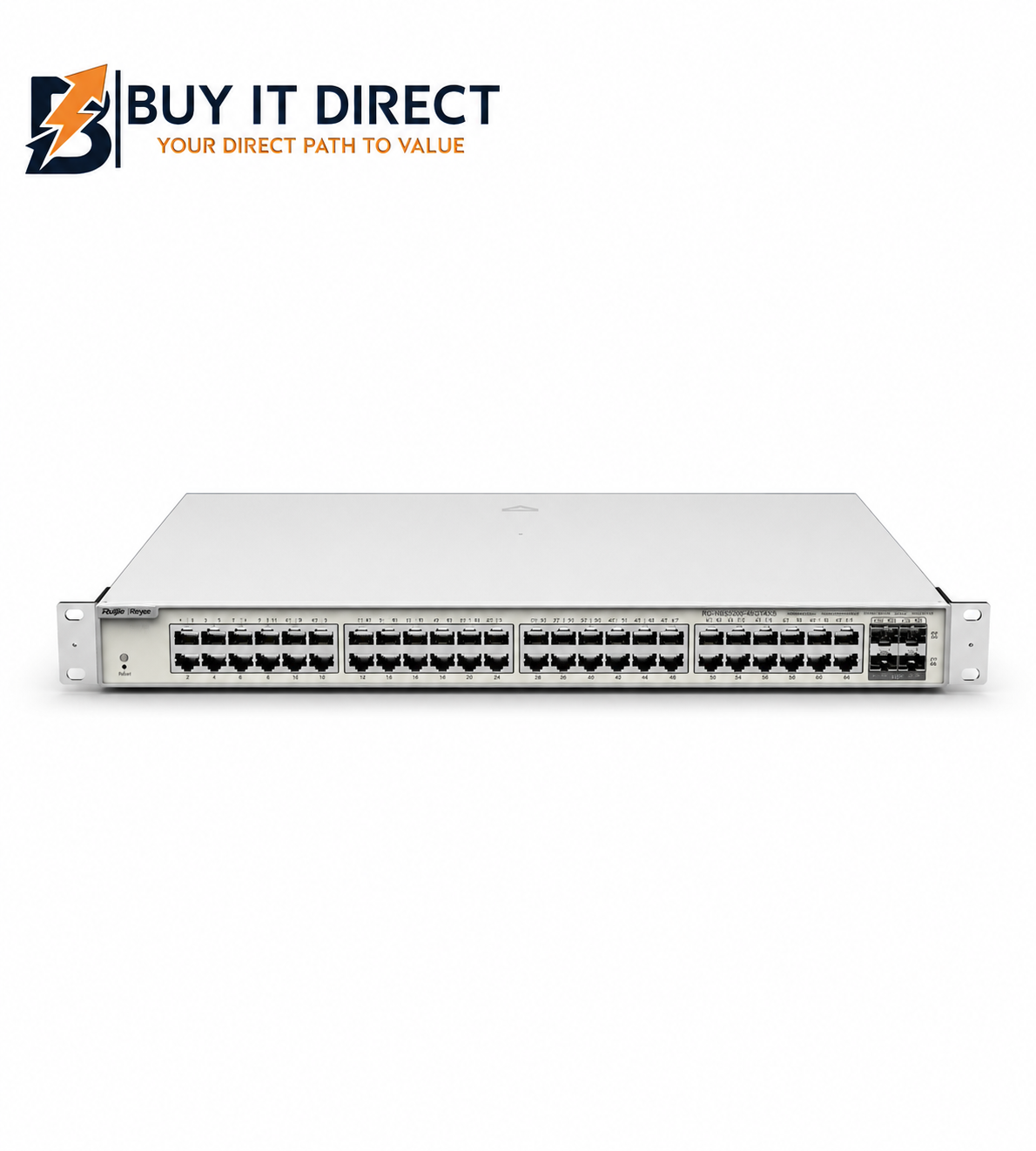

Model RG NBS3200 48GT4XS P

Product Type Layer 2 Plus Cloud Managed PoE Network Switch

Total RJ45 Ports 48

Ethernet Ports 48 x 10 100 1000BASE T

PoE Ports 48

PoE Standards PoE and PoE Plus

Maximum PoE Output Up to 30W Per Port

Total PoE Budget 370W

Optical Uplink Ports 4 x 10GE SFP Plus

Switching Capacity 176Gbps

Forwarding Rate Approximately 131Mpps

Management Ruijie Cloud

Jumbo Frame Up to 9216 Bytes

Port Isolation Supported

Broadcast Storm Control Supported

PoE Watchdog Supported

Designed for enterprise hospitality factory education retail CCTV and other professional network environments requiring high density Gigabit connectivity and PoE power delivery

Provides 48 Gigabit Ethernet PoE ports for connecting and powering compatible IP cameras wireless access points VoIP phones and other PoE enabled network devices through Ethernet cabling

Four 10GE SFP Plus uplink ports provide high speed fiber connectivity for connecting the switch to core switches servers and other compatible network infrastructure

Total PoE power budget of 370W provides centralized power delivery for multiple compatible PoE and PoE Plus devices without requiring individual power adapters

Supports up to 30W PoE output per compatible port within the total available PoE power budget

176Gbps switching capacity provides high performance traffic handling for demanding business CCTV and enterprise network environments

Ruijie Cloud management allows administrators to remotely monitor and manage supported switch functions from compatible cloud management tools

Supports VLAN configuration to help segment network traffic between departments users cameras and other connected network devices

PoE Watchdog helps detect unresponsive connected PoE devices and can assist with maintaining reliable operation in surveillance and other network deployments

IP camera recognition provides additional convenience for CCTV installations by helping administrators identify compatible surveillance devices connected to the network

Port Isolation and Broadcast Storm Control provide additional network security and stability features for professional deployments

Supports jumbo frames up to 9216 bytes for compatible network applications requiring larger Ethernet frame sizes

Operating temperature range from 0 to 50 degrees Celsius supports deployment across a variety of professional indoor networking environments

6KV surge protection helps improve reliability against electrical surges on supported service ports and the power connection

Manufacturer rated MTBF of 400000 hours provides dependable operation for continuous business network environments

Backed by a 5 year manufacturer warranty according to Ruijie Reyee specifications

Ideal for enterprises offices hotels schools factories retail stores CCTV systems and other installations requiring 48 Gigabit PoE ports with high speed 10G fiber uplinks
