The TP Link Omada EAP773 is a BE9300 Tri Band WiFi 7 Ceiling Mount Access Point designed to deliver high speed wireless connectivity for business, hospitality, education and high density networking environments. It combines WiFi 7 technology with centralized Omada management, a high speed 10 Gbps Ethernet port and tri band wireless connectivity across 2.4 GHz, 5 GHz and 6 GHz.

The Middle East and EU version provides combined wireless speeds of up to 9.3 Gbps, with up to 574 Mbps on 2.4 GHz, 2880 Mbps on 5 GHz and 5760 Mbps on 6 GHz. The 6 GHz band provides additional spectrum for compatible WiFi 6E and WiFi 7 devices, while 320 MHz channel bandwidth helps support high speed wireless transmission.

WiFi 7 technologies including Multi Link Operation MLO, 4K QAM, Multi RUs, OFDMA and MU MIMO help improve network efficiency, capacity and performance for compatible devices. Beamforming, Band Steering, Airtime Fairness and Load Balance further support efficient wireless network operation.

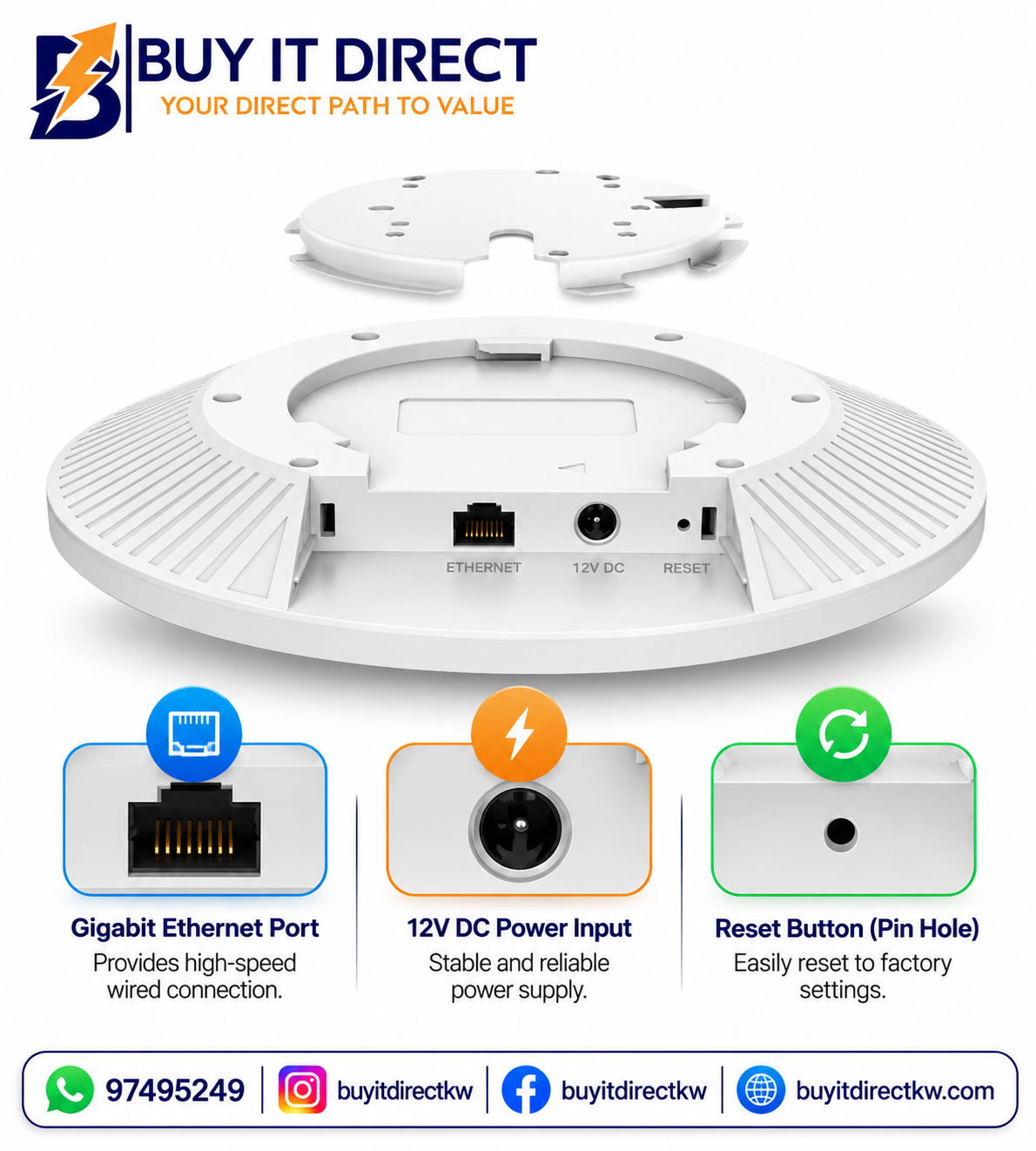

The EAP773 features one 10 Gbps Ethernet port, allowing the access point to take advantage of high speed wired infrastructure and provide sufficient backhaul capacity for WiFi 7 wireless performance. It supports Power over Ethernet for simplified installation, reducing the need for a separate power connection at the access point location.

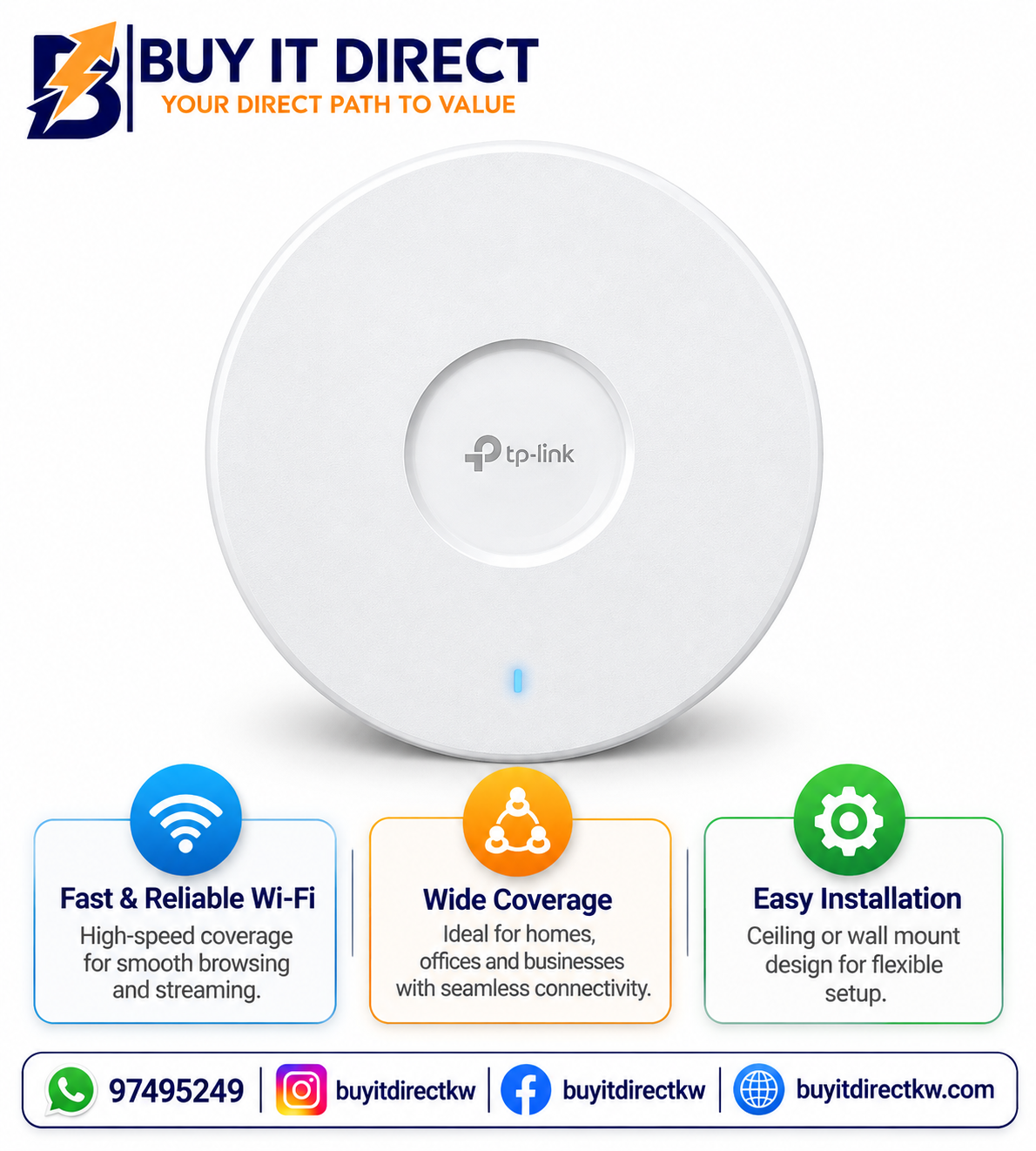

The access point is designed for ceiling or wall mounting and has a slim profile measuring 220 x 220 x 32.5 mm. Its compact design makes it suitable for professional installations in offices, hotels, schools, retail environments and other commercial locations.

With Omada centralized management, the EAP773 can be managed through the Omada Software Controller, Omada Hardware Controller, Omada Cloud based Controller and Omada App. Features include centralized configuration, monitoring, wireless scheduling, multiple SSIDs, VLAN support, captive portal authentication and security management.

The EAP773 also supports Omada Mesh and seamless roaming features, allowing compatible Omada access points to work together to provide continuous wireless connectivity across larger deployments.

Buy It Direct offers the TP Link Omada EAP773 as a high performance WiFi 7 access point for businesses and organizations requiring fast, scalable and centrally managed wireless networking.

Key Technical Specifications

Brand: TP Link Omada

Model: EAP773

WiFi Standard: WiFi 7 IEEE 802.11be

Wireless Class: BE9300

2.4 GHz Speed: Up to 574 Mbps

5 GHz Speed: Up to 2880 Mbps

6 GHz Speed: Up to 5760 Mbps

Combined Wireless Speed: Up to 9.3 Gbps

Ethernet: 1 x 10 Gbps Ethernet Port

Wireless Bands: 2.4 GHz, 5 GHz and 6 GHz

Channel Width: Up to 320 MHz

Wireless Features: MLO, 4K QAM, Multi RUs, OFDMA, MU MIMO, Beamforming, Band Steering, Airtime Fairness and Load Balance

Wireless Client Capacity: Up to 128 clients per band

Concurrent Clients: Up to 380 plus according to TP Link specifications

Multiple SSIDs: Up to 24, with 8 per band

Security: WPA Personal and Enterprise, WPA2 Personal and Enterprise, WPA3 Personal and Enterprise, OWE, VLAN, wireless isolation and Rogue AP Detection

Management: Omada Software Controller, Omada Hardware Controller, Omada Cloud based Controller and Omada App

Mesh: Omada Mesh Supported

Roaming: Seamless Roaming supported

Bluetooth: Bluetooth 5.2

Power: 802.3at PoE or 12V 2.5A DC depending on regional hardware and firmware configuration

Mounting: Ceiling or Wall Mounting

Dimensions: 220 x 220 x 32.5 mm
