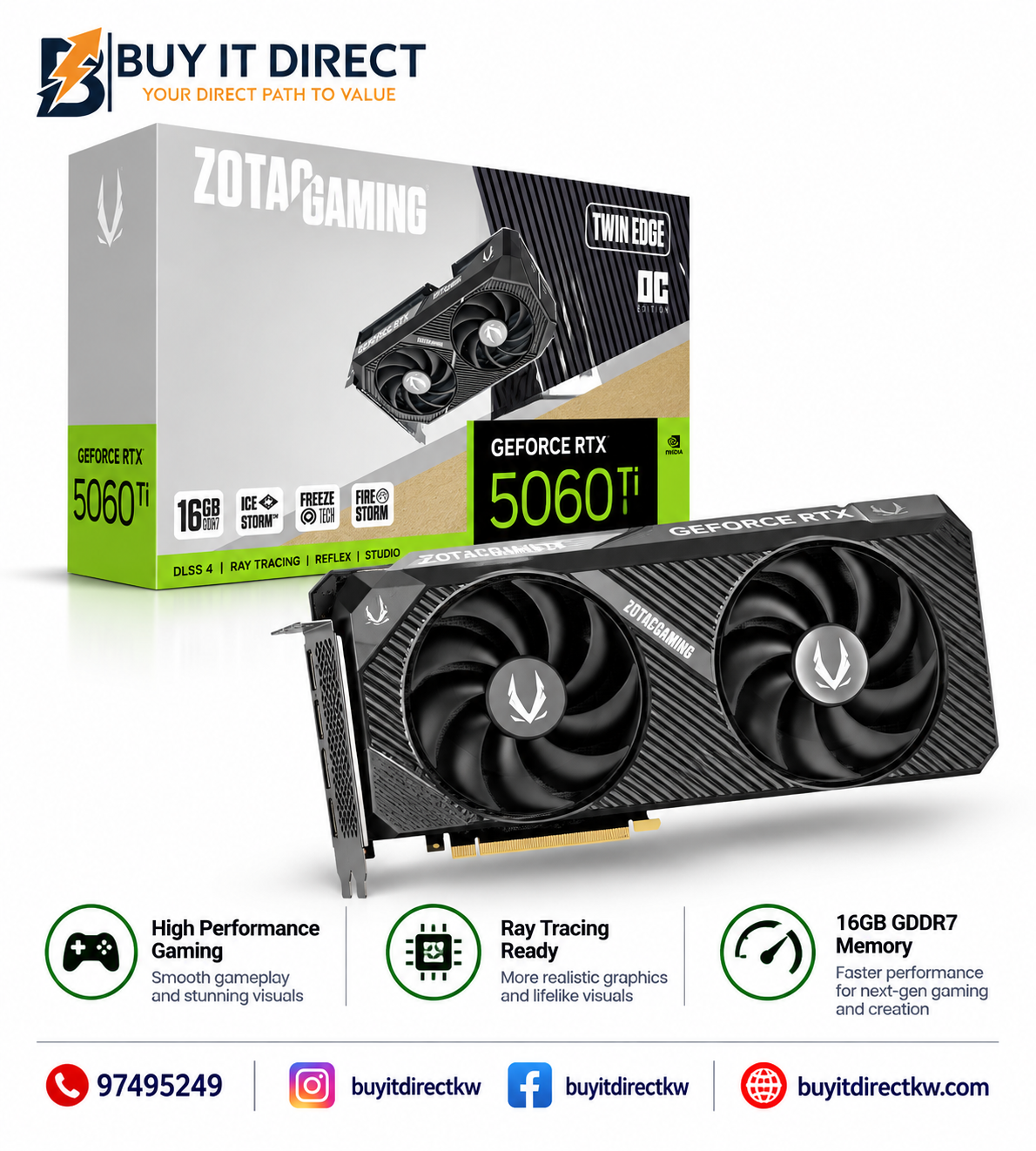

The ZOTAC GAMING GeForce RTX 5060 Ti 16GB Twin Edge OC Graphics Card delivers powerful graphics performance for modern gaming, content creation, and demanding applications. Powered by the NVIDIA GeForce RTX 5060 Ti GPU and NVIDIA Blackwell architecture, it features 16GB of high speed GDDR7 memory, DLSS 4 support, and a factory overclocked engine clock of up to 2602 MHz.

Its compact dual fan design, IceStorm 2.0 cooling, BladeLink fans, and FREEZE fan stop technology provide efficient cooling and quiet operation. The card is SFF Ready, making it suitable for compact and high performance desktop builds.

Technical Specifications

Graphics Engine: NVIDIA GeForce RTX 5060 Ti

Architecture: NVIDIA Blackwell

CUDA Cores: 4608

Video Memory: 16GB GDDR7

Memory Interface: 128 bit

Memory Speed: 28 Gbps

Engine Boost Clock: Up to 2602 MHz

AI Performance: 759 TOPS

Bus Interface: PCI Express 5.0 x8

Cooling: IceStorm 2.0

Fans: Dual 90mm BladeLink Fans

Display Outputs: 3 x DisplayPort 2.1b with UHBR20 and 1 x HDMI

Maximum Displays: Up to 4

Recommended Power Supply: 600W

Maximum Power Consumption: 180W

Power Connector: 1 x 8 pin

Slot Size: 2 Slot

Dimensions: 220.5 x 120.25 x 41.6 mm

DirectX: 12 Ultimate

OpenGL: 4.6

Operating System: Windows 10 64 bit and Windows 11 64 bit
