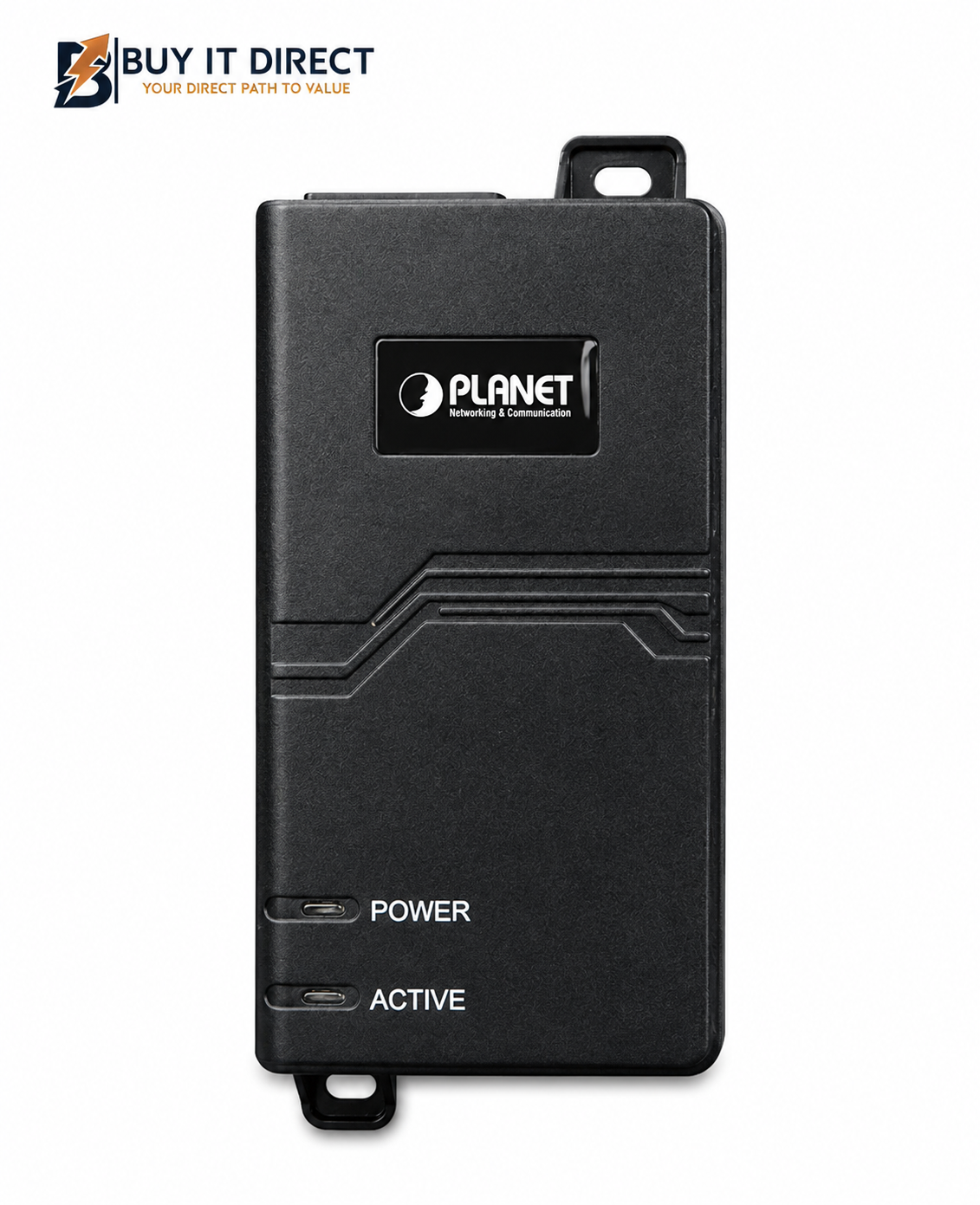

Brand Planet
Manufacturer Planet Technology
Model POE 172
Product Type Ultra Power over Ethernet Injector
Number of PoE Ports 1
Data Input Port 1 RJ45
Data and Power Output Port 1 RJ45
Network Speed 10 100 1000Mbps
Network Type Gigabit Ethernet
Maximum PoE Output 60W
PoE Technology Ultra Power over Ethernet
PoE Power Delivery 4 Pair UTP
PoE Compatibility IEEE 802.3at and IEEE 802.3af Powered Devices
PoE Power Supply Type End Span and Mid Span
Output Voltage 56V DC
Maximum Transmission Distance 100M
Network Cable Cat 5 Cat 5e and Cat 6 Depending on PoE Application
Power Input 100 to 240V AC
Power Frequency 50 60Hz
Power Supply Internal
External Power Adapter Required No
AC Connector IEC 320 C6
LED Indicator Power
PoE LED Indicator Active PoE Ready and In Use
Installation Plug and Play
Design Compact All in One
Mounting Wall Mountable
Application High Power PoE Networking
Designed to provide high speed Gigabit Ethernet data and up to 60 watts of Ultra PoE power through compatible Ethernet cabling
Features one 10 100 1000Mbps RJ45 Data input port and one 10 100 1000Mbps RJ45 Data and Power output port for straightforward network deployment
Provides up to 60 watts of Power over Ethernet using all four pairs of compatible UTP Ethernet cabling
Four pair power delivery enables the injector to provide higher power than conventional two pair IEEE 802.3af and IEEE 802.3at PoE implementations
Backward compatible with compatible IEEE 802.3at PoE Plus and IEEE 802.3af PoE powered devices for flexible network deployment
Automatically detects compatible IEEE 802.3at and IEEE 802.3af powered equipment before supplying PoE power
Supports 10Mbps 100Mbps and 1000Mbps Ethernet connectivity for reliable Gigabit network data transmission
Combines Ethernet data and electrical power through a single compatible network cable to simplify remote device installation
Supports remote power feeding for distances up to 100 meters over compatible Ethernet cabling
Suitable for compatible high power network equipment including PTZ speed dome cameras all in one touch computers remote digital signage displays and other supported devices requiring increased PoE power
Provides a practical solution for adding high power PoE functionality to an existing non PoE Gigabit Ethernet network
Internal power supply eliminates the need for a separate external DC power adapter and helps simplify installation
Supports universal 100 to 240V AC power input for convenient deployment in different professional networking environments
Power LED provides visual indication of the operating status of the injector
PoE Active LED provides visual indication when compatible PoE equipment is connected and receiving power
Plug and Play operation requires no software configuration making installation straightforward for network technicians and system integrators
Compact all in one construction helps reduce installation complexity and saves space around network equipment
Wall mountable design provides flexible placement in network rooms equipment cabinets surveillance installations and other environments
Suitable for surveillance systems wireless networking digital signage business networks and other applications requiring higher PoE power
Can be paired with compatible Planet Ultra PoE splitters for applications requiring separate Ethernet data and DC power at the remote device
Ideal for users requiring a single port Gigabit Ultra PoE injector with up to 60 watts of power and an integrated internal power supply
